Small Steps

Originally Published: January 2014 Words: Paul Looe Pictures: Harry Hamm

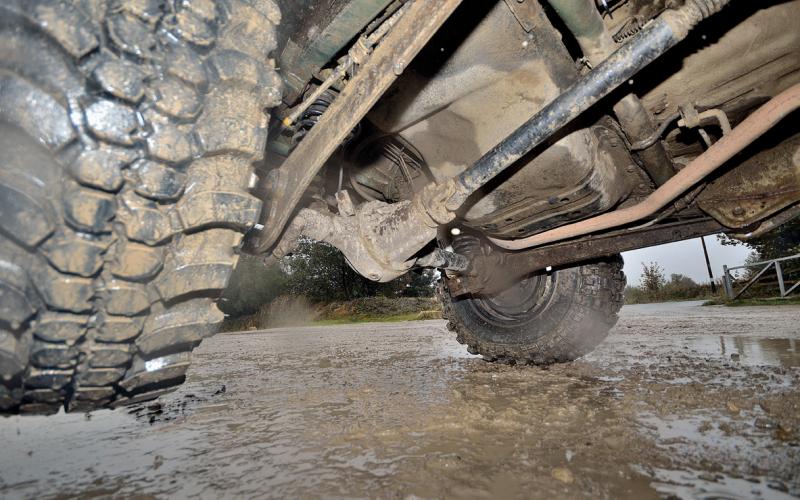

Both axles are standard, as is the steering. Jimny units aren’t famed for their unbustable strength, but Tom reckons that aside from having done a few halfshafts, they’re okay. One thing you’ll notice about the front axle is that the radius arms locating it are made of gusset-welded tube – stronger than the original, and they’re castor-corrected to suit the +3” springs and shocks you can see part of here too

Both panhard rods are adjustable, allowing axle position to be maintained despite the extra height of the new suspension. Note the lifted mount on the axle here, and you may also be able to see the poly bush in the chassis. Talking of lifted mounts, you might just about be able to make out the +1” spring spacers which hike the suspension lift to 4”. As for the axle itself, this contains a locking diff. ‘I’m waiting for a certain person to make some heavy-duty halfshafts and CV joints and get them on sale,’ says Tom; you can read what you want from between those lines…

Factory radius arms on the back axle aren’t the stoutest looking things you’ll ever see. For a man who admits that he’s ‘addicted to spending money on it,’ you’d expect Tom to be splashing the cash on a heavy-duty set before the project’s too much older

Tom started by binning the original tyres for a set of ATs, then quickly binned those too for a proper mud pattern. These days, a set of 31” Kingpin Trekkers on pepper-pot steels means wanting for traction is largely a thing he used to do

If you want to fit taller tyres but you don’t much fancy making your truck undriveable, lifted body mounts are your ally. As with the suspension, going silly will just create a load of extra problems, but in combination with the taller springs and trimmed arches this 2” body lift means the Jimny can rock its 31” tyres with ease

Fitting a snorkel can barely be counted as modifying your engine, but since that’s the only thing Tom’s changed about it that’s what we’ll call it for now. In a classic nod to the fact that there’s no such thing as a finished project, his answer when we ask what he’d like to do with the engine is ‘get a bigger one’

The transfer case you’re looking at here is a classic Rock Lobster made by mashing up the internals from SJ410 and 413 units. Protecting his investment, Tom has fitted a heavy-duty fabricated bash guard that sits snugly below the casing

The front bumper mounts have been cut off the chassis and a fabricated steel bumper welded into place. As you can see, it was designed to take a winch but doesn’t contain one. There’s more of the same at the back, along with heavily trimmed arches

The front seats have been shrouded under waterproof covers: the rear seats have been shrouded under a tarpaulin, or possibly a skip, as they’ve been ripped out to make way for recovery kit and tools. Let’s face it, if you want to store much in the way of either in a Jimny something’s got to give

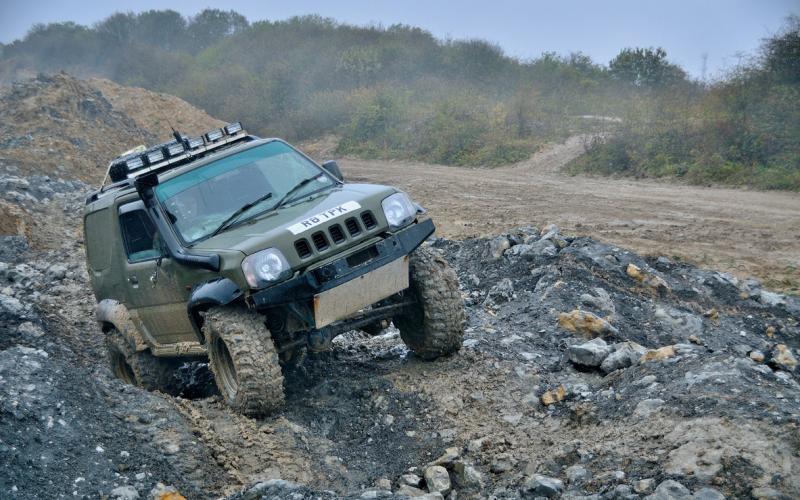

Tom Kirk’s Suzuki Jimny stands almost 9” taller than it did when he bought it. But it’s not on a huge suspension lift, nor a huge body lift, nor huge spacers, nor huge tyres. By combining lots of different techniques and not going overboard on any of them, he’s created a playday truck that won’t throw a strop however hard he kicks it. Though every so often it might want to go for little lie-down…

We’ve said it before, and no doubt we’ll say it again, but getting all your lift from one source is asking for trouble. Fit a set of springs so long each end has its own postcode, and you’ll be bouncing around like Zebedee; run a giant body lift on standard suspension, and you might as well be driving a block of flats. And if you try to fit the sort of tyres you need for off-roading by cutting away bodywork alone, your truck will end up looking like a kids’ climbing frame on wheels. And driving like one, too.

Fact is that there’s a lot of reasons why it makes sense to mix it up. One very good one is that your 4x4’s manufacturer built it with a certain amount of tolerance in every area, but not too much anywhere. If you try to, for example, lift the suspension by the thick end of a foot and expect everything else to remain hunky dory, you’re in for a shock. Similarly, heaving the body away from the chassis by that sort of distance is going to result in all sorts of things being all sorts of rubbish. And all you’ll create by hacking away enough bodywork to fit a giant set of tyres is a large piece of scrap.

Tom Kirk knew not to do that. When he first bought his Suzuki Jimny, he ran it standard for ‘a few days.’ That’s normally all it takes. On went as set of AT tyres, and those didn’t hang about long either before being kicked into touch for a set of MTs.

These are a lot bigger than the Jimny’s standard tyres (it runs on 31x10.50R15s), which meant lifting it was an immediate concern. And Tom wisely hedged his bets about as much as you can, mixing four separate techniques for making the bigger tyres fit.

Obviously, when you’re talking about off-roaders the place to start is with the suspension. More height doesn’t necessarily mean more flex, but if does offer loads of potential – which Tom made the most of with a +3” set-up featuring Pro-Comp shocks. He also used 1” spring spacers, adding more lift between the chassis and axles – though obviously this doesn’t do anything more for the truck’s articulation.

Neither does a body lift, but he added one of these too anyway with +2” spacers hiking the distance from the chassis to the tub. This, of course, is primarily a way of creating better ground clearance and making space for bigger tyres – as is trimming the wheelarches, and he did plenty of that too.

Even the tyres themselves add 2-3” in lift, being so much taller than the Jimny’s weedy little 205/70R15 OE rubber. So that, between everything, places the vehicle’s roof about 9” further off the ground than it once was. The words ‘centre of gravity’ come to mind, though a combination of offset rims and 32mm wheel spacers help return the vehicle to its original stable self. As Tom illustrated, or not, when he very gracefully placed it on its side halfway through our photoshoot.

It had been doing a very nice job of demonstrating how well it articulated until that point, but afterwards all Tom’s mates from Yorkshire Suzuki did a very nice job of demonstrating what a good sense of humour they’ve all got when the opportunity arises. You know how it goes.

Anyway, Tom’s plans for the vehicle’s future include a roll cage. Never a bad thing; the roll we watched did nothing worse than stuff a wing mirror, but you can’t rely on luck to always be on your side. He’s also intending to do something about the 1.3 engine – like replace it with a bigger one.

All this from a man who had never owned a 4x4 prior to getting the Jimny in his life. He’s happy to limit his off-roading to doing playdays with the lads, but having got into the game he’s definitely not just dabbling now. ‘I’m addicted to spending money on it!’ he says, which will ring true to most of us.

Something else you might recognise is that when he first bought it, the Jimny was his only vehicle. But pretty soon, he learned that getting from A to B in a car that’s also your off-road toy only works if you don’t mind putting a cap on the amount of fun you can have. ‘It used to be my daily driver,’ he says. ‘But I’ve now bought a car so I can give this more hammer off-road!

Like the time he came close to stacking it monster-style, for example. ‘I almost rolled down the steepest hill I’ve ever driven up,’ he admits. ‘I couldn’t go forward or back, as my frond end just kept slipping round until the Jimny was about to go over. I thought my mates were at the bottom of the hill laughing… but then I saw them all climbing the hill to save me. They were falling and sliding back down, but eventualy they got to me and lifted the front end back round so I could drive backwards down the hill! That’s when I knew I had real friends – only about eight of them though!’

Better gloss over the comment Tom makes about not needing a winch, possibly. He’s got his tongue in his cheek when he says it, but still…

You can be sure he’d have been able to rely on that same group of friends to fix his Suzuki had things gone wrong, but as it is they’re more than just mates in the mud. Richard Fox, aka Vitara Mad, whose Discovery-axled Vitara will appear in a future issue of TOR, gets a shout for helping Tom in the workshop and teaching him the stuff he wasn’t already sure about – that’s a notable theme in the Yorkshire Suzuki world, where mucking in on each other’s motors and learning from each other’s skills and experience is simply the normal thing to do.

So too is egging each other on to be the one who does the barmiest thing on a day out, which is pretty much what started happening as soon as Tom’s Jimny had been fetched back on to its wheels at our shoot. ‘I don’t know much of its history,’ he says, ‘other than that I have abused it! But I wouldn’t have done anything differently, though I’d add more mods if I were rich!’

Not to worry, he’s done enough to be going on with. Including all those various ways of making it taller and otherwise creating more space for bigger tyres, of course. Which are among the best mods he reckons he’s made: ‘The Rock Lobster transfer box, suspension lift and, mostly, the mud tyres.’ Not that those are the only mods, and with more to come this Suzuki is one tidy toy. ‘I’m sure there’s plenty of stuff I’ve forgotten about,’ concludes Tom. ‘It’s cost enough to build!’ Hands up if that sounds familiar…
