Like Water Off A Duck's Back

Originally Published: June 2014 Words: Dan Fenn Pictures: Dan Fenn

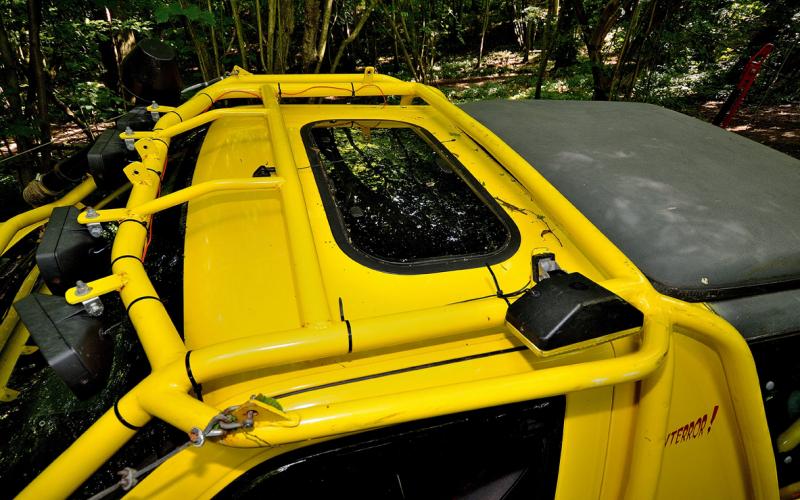

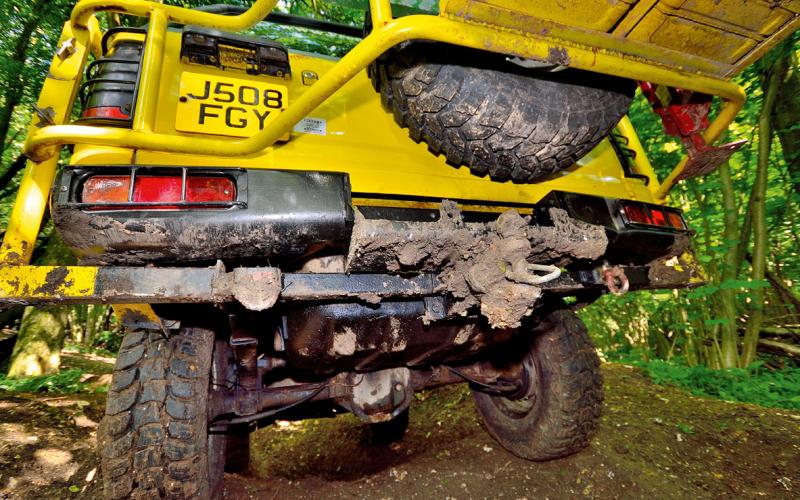

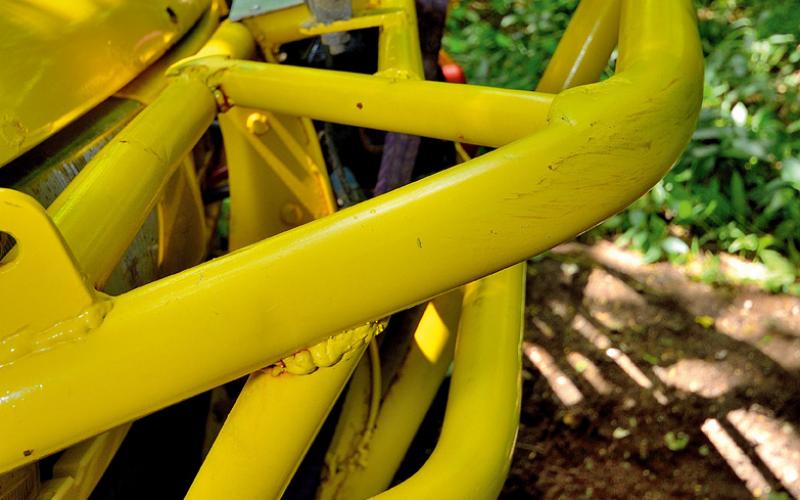

So, the cage. As you’ll have noticed, it’s everywhere, basically. It was built by Greg from Fronty4x4spares and the Frontera Owners Group when he owned the vehicle, using 2” o/d gas barrel tube with a wall thickness of about 6mm. Unlikely to move for much, then. It’s mounted to the chassis in four locations, bolted to the towbar in two and welded to the back bumper and thence the tow bar mount for good measure. As well as a safety cell, the structure provides protection for pretty much every part of the body, on top of being tied to the rock sliders and providing mounts for the brush lines. As you can see, Greg’s not one for skimping when it comes to welding in runs of tube – this is a cage that definitely makes a statement, as well as adding an estimated 250kg to the truck’s gross weight

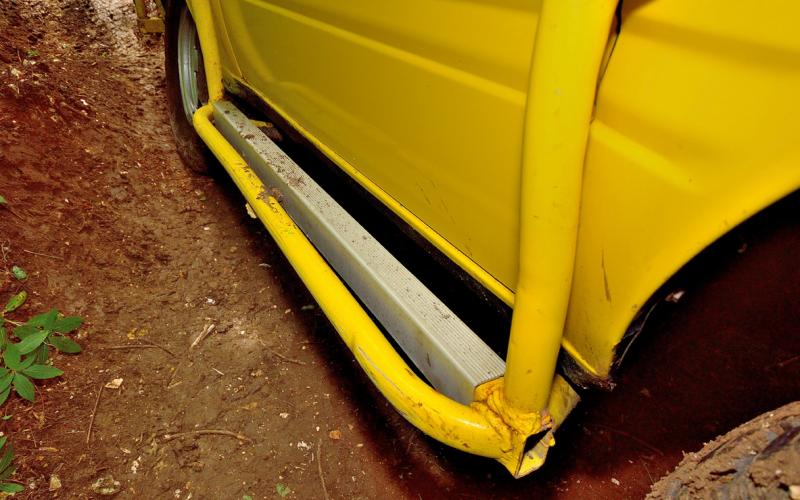

The cage runs down to a set of rock sliders, which are very much part of the overall structure. The ally covers are sectioned side rails which had been ripped off an Iveco 7.5-tonner; Greg quartered them then glued them to the steel tube with Sikaflex

The array of front-end steelwork ends here, as the Frontera came with an engine bash plate as standard

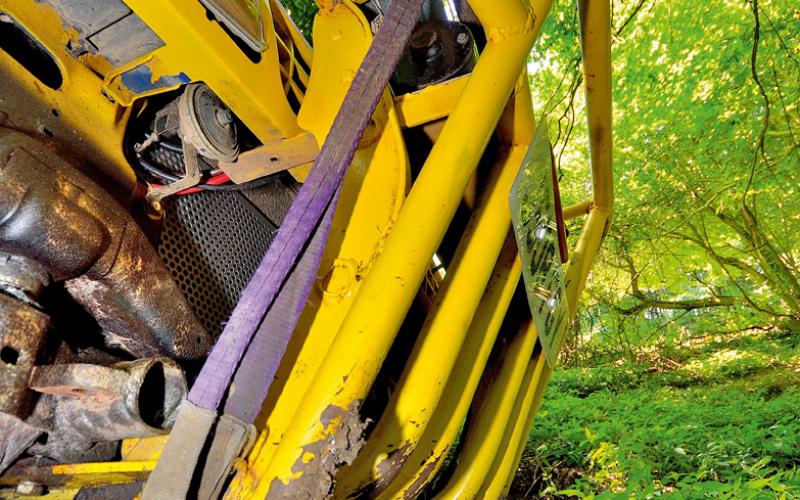

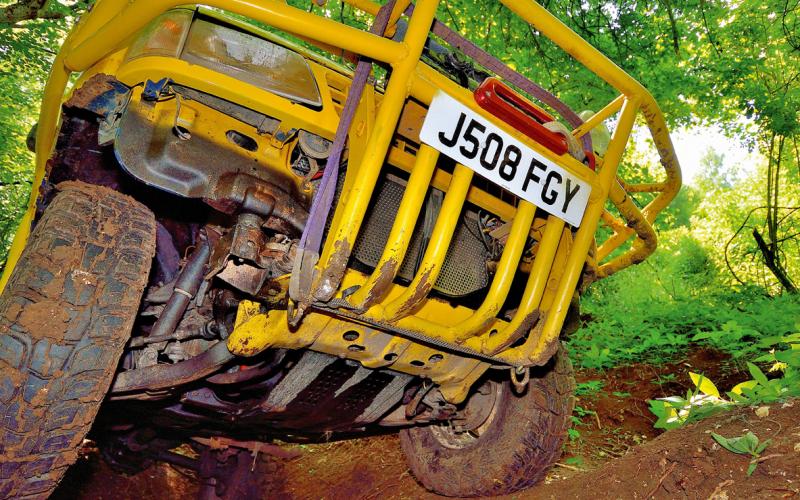

The front of the exo structure is not what you’d call backward in coming forward. It’s not what you’d call subtle, either, or light, but it’s definitely there. Matt’s currently looking for an original bumper to winkle in behind all the tube: that’ll be to make it look standard, presumably...

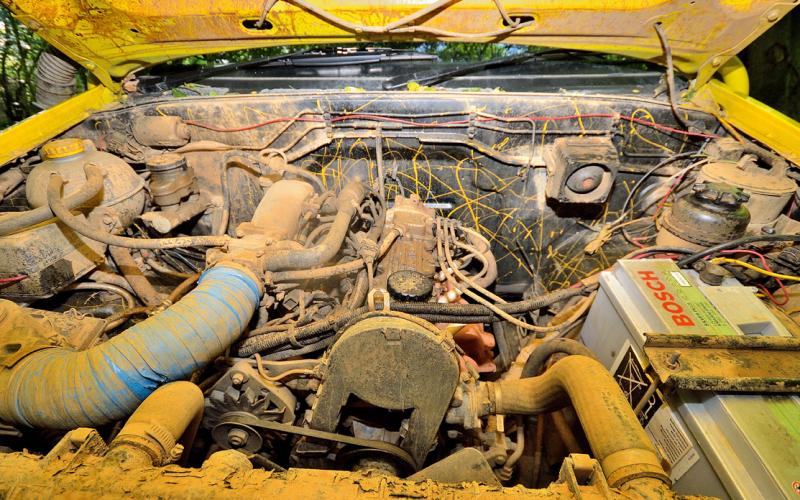

The engine is a completely standard C20NE 2.0-litre 8-valve petrol which gets serviced every 5000 miles to keep it running they way they can when they’re treated right. ‘I couldn’t be bothered to strip it out and body-colour it,’ admits Greg of the Jackson Pollock bulkhead. ‘So I painted it black with a touch-up gun then did the splat attack yellow with a screwdriver!’

Look carefully, and you can see where the propshaft was extended by 2” to deal with the extra height and droop in the suspension. Something you don’t need to look at all carefully to notice is that the exhaust has something a bit fruity going on – a cherry bomb exits into a Y-piece leading to twin side pipes finishing just ahead of the rear wheels

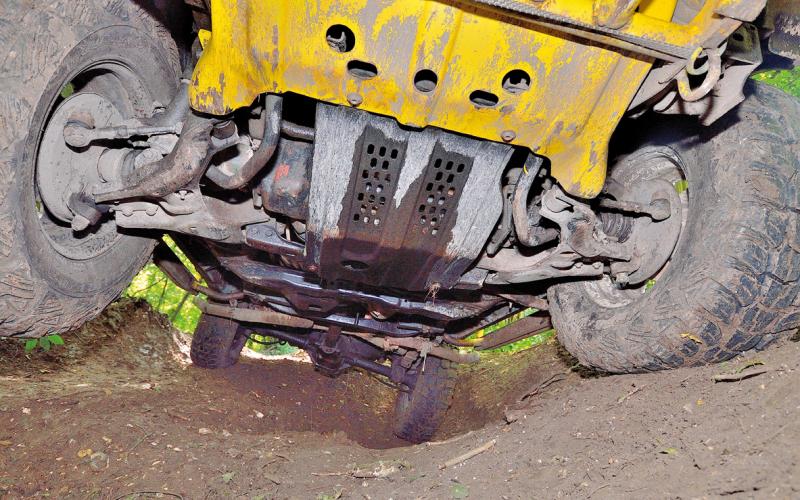

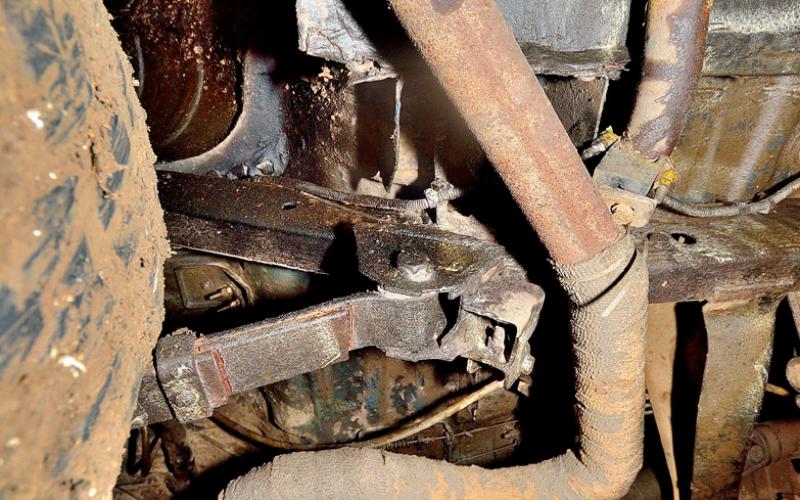

Front wishbones have been wound up by 2”, and the ball joints have been flipped as well. You’re looking at the business end of a 235/85R16 Kumho KL71 here – since we took our pictures, Matt’s replaced these with 33x12.50R15s, which are an inch and a half taller and more than three wider, and Greg’s finally stopped mocking him for running silly little tyres

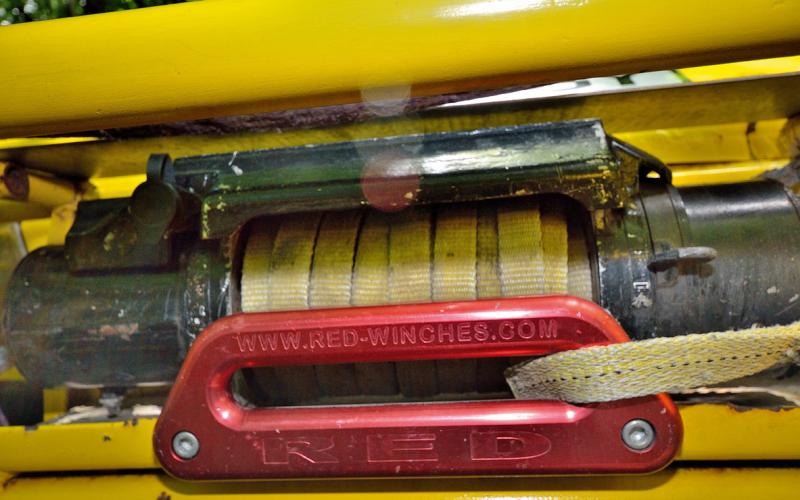

A Red Winch fairlead is a bit of a novelty, but the winch itself is ‘merely’ an 8000lb Ramsey Pro. That there is 120 feet of Samson winch webbing wrapped around it – this is a bit like synthetic rope, only being flat you can get more of it on your drum

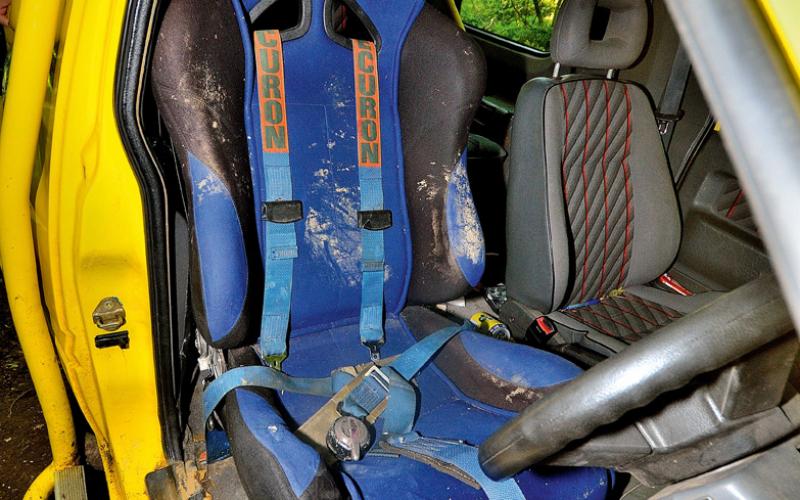

Why did Matt only fit one bucket seat? Because that’s all you get when you won it on eBay for 99p, that’s why. It’s fitted with a 5-point harness, though most of the time the Frontera’s not being used off-road – believe it or not, this is Matt’s everyday car

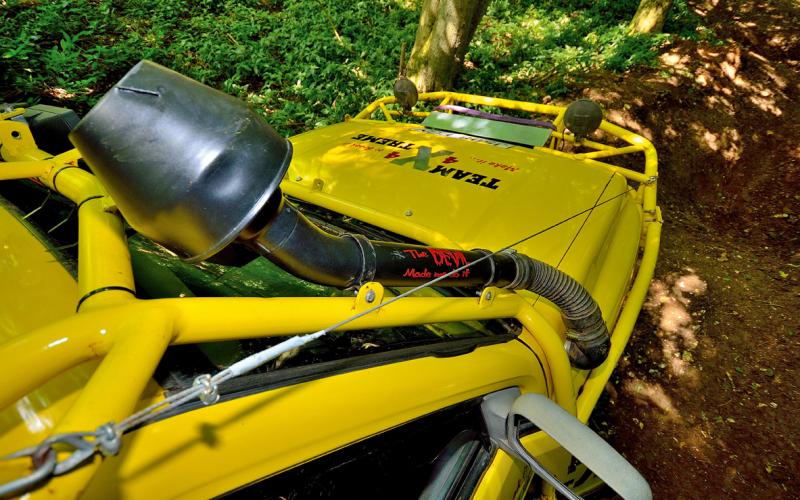

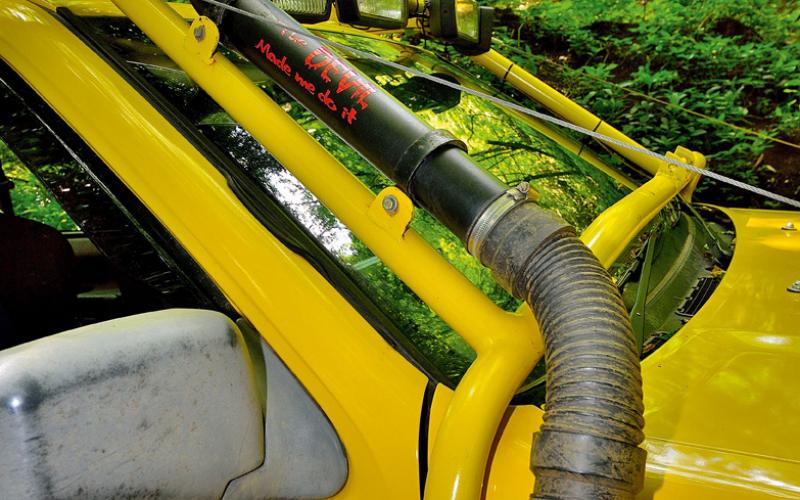

Finding a snorkel for a Frontera isn’t the easiest thing to do, so this is one for a Land Rover Defender 300Tdi. It’s mounted to the cage, as you can see, and the wing was modified to accommodate it

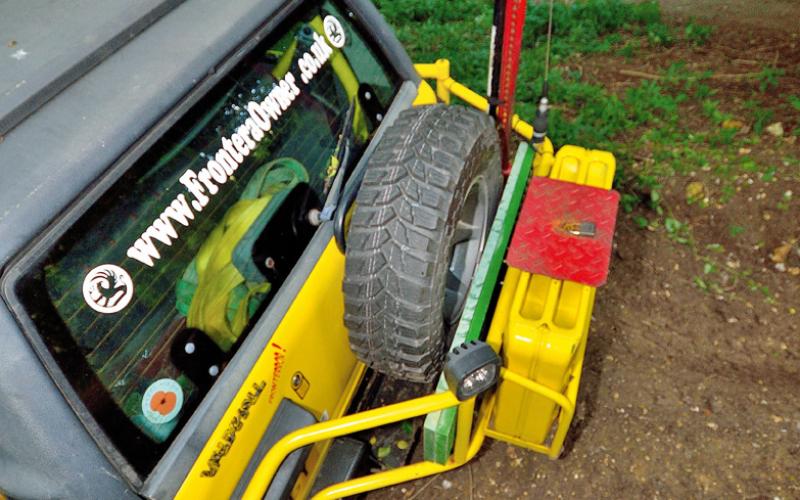

There’s swing-away spare wheel mounts, and then there’s… this. Amazingly, the spare wheel stays in place on the back door, but a full-width frame runs behind it to carry the high-lift jack, work light, waffles and two jerry cans, one for fuel and one for water. It’s even got the mount for the CB whip on it, and when it’s fully open it doubles the width of the vehicle

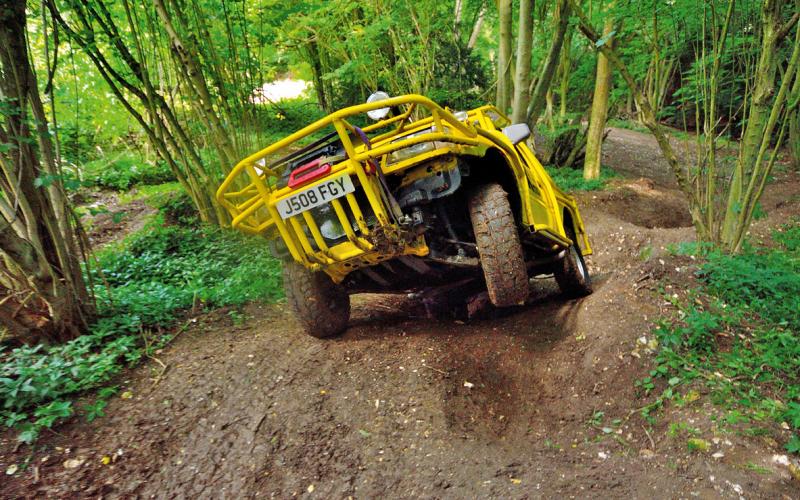

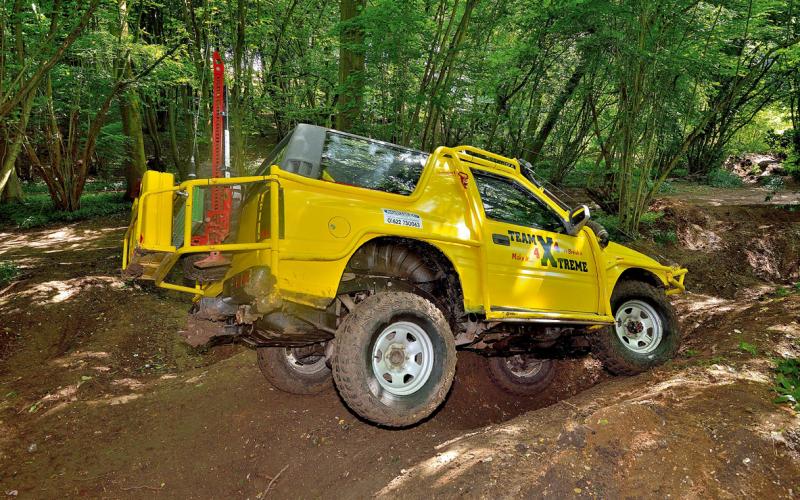

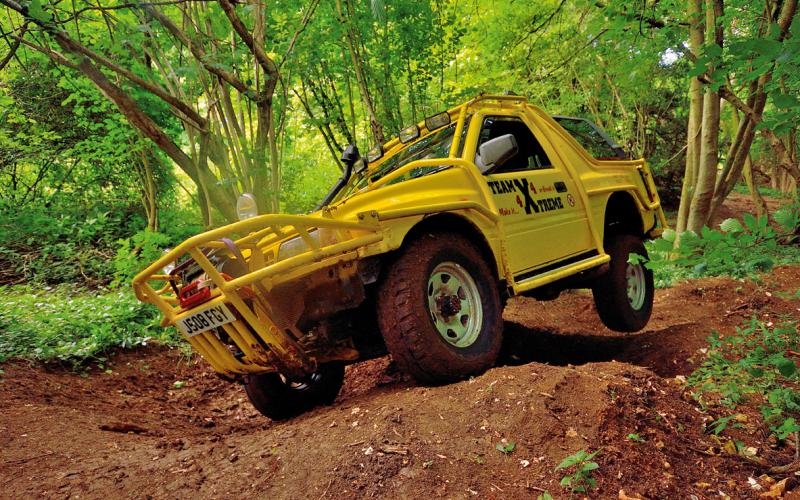

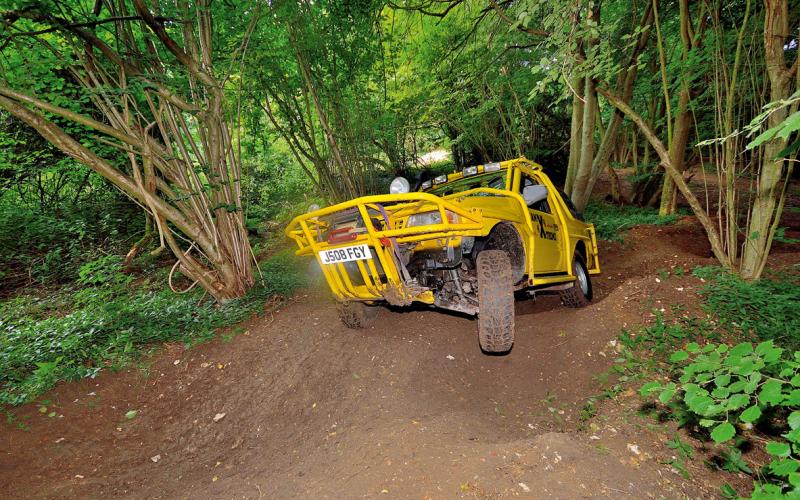

This is The Duck. The Vauxhall Frontera 2.0 Duck, to give it its full name. It was going to be in Total Off Road ten years ago, but it had a very heavy landing that quacked its rear springs, which must have made the back tyres fowl their wheelarches. Today, new owner Matt Todd has rescued it from seven years of SORN and put it back on the road. He did it with a set of eBay bargains, though, so at least this isn’t the kind of duck that hits you with a big bill.

Let’s talk about ducks. They can fly, they can swim, they can walk… but when they come in to land, it’s not normally ever so graceful.

Matt Todd calls his Frontera The Duck. And it would have appeared in Total Off Road years ago, but for the want of a softer landing.

Let’s go back about a decade. A chap called Greg, who’s been playing with Fronteras for so long that when he started they were still being made, got a very early 2.0 Sport in for a few minor repairs. Greg’s very good at repairs, whether minor or otherwise, but he’s also very good at getting carried away and he accidentally welded a quarter of a tonne of tube to it.

Matt is the first to admit that while he does most of his own work on it these days, the truck as it presents itself to the world is pretty much all down to Greg. It was he who did the cage and body protection, inspired as he was by rock-crawling Toyotas from the US, lifted the suspension and put it on a set of 33x12.50R15s.

And then he spoke to Total Off Road, and we got very excited and set up a photoshoot, and Greg went out for a little play, and he went and got carried away again and The Duck came in for a heavy landing, and the front diff went bang, and the rear springs went snap, and ring ring went the phone and ten years later here we are finally telling you about this unique Frontera among Fronteras.

What happened in the intervening years? Well, it got fixed. But it also got SORNed, as Greg had idea about fitting a GM V8 diesel, Atlas tranny and four-linked Patrol axles but couldn’t justify the cost. Eventually, he decided to let someone else enjoy it as it stood. ‘When I viewed it,’ says Matt, ‘it was the first time it had started up in three years.’

Now, SORN isn’t the end of the line for a 4x4, far from it. If a car’s not going to be used on the road, why wouldn’t you? But using it on the road is exactly what Matt had in mind – believe it or not, this fantasy in bent tube is his daily drive.

‘It had most of the mods done already,’ he says. ‘But with not being on the road for seven years, I had to set about getting it roadworthy – which took four solid days of work.’

Actually, after seven years and a mixture of hardcore off-roading and hardcore abandonment, you might say four days’ MOT prep qualifies as a pretty good result from trailer to ticket. Not that Matt’s a know-nothing when it comes to this kind of stuff, having already owned, modded and wheeled (and scrapped) another 2.0 Sport. He got into off-roading on two wheels (with pedal power rather than an engine) and started helping out at Penshurst Off-Road Cycling in Kent, where his site vehicle was an SJ413. ‘I fell in love with it,’ he recalls. ‘Then I found out about the Vauxhall Frontera when I had a go in a friend’s long-wheelbase; I decided I liked it and wanted one.’

It wasn’t long before he was hanging with the Frontera Owners Group (www.fronteraowners.co.uk), whose unique 30-acre site in Kent has been featured in these pages before and was the venue for our photoshoot. The club went looking for some land that wasn’t being used, did a deal with a local farmer and developed an overgrown, wooded hillside into something that gives them a playground and him an income.

Anyway, the Duck. It was a rare convertible when Greg built it (the world’s coolest dog wagon’ he says), but Matt converted it to a hard-top for a bit more security, what with it being his chariot of choice for trips to the shops. It must be a good laugh in the Tesco car park.

He also replaced the 33” tyres with something a little smaller. ‘Silly size tyres,’ laughs Greg, though he wasn’t covering 400 miles a week in it (seriously, Matt does this). On the road, he runs 31x10.50R15 Goodyear Wrangler AT/Rs on 8.5J Pajero rims, while for playtime he fits a set of 235/85R16 Kumho KL71s on 6J Hi-Lux steels.

With so many wheels and tyres in his life, it’s no wonder that this has been the most expensive part of the vehicle for Matt. Even so, £350 for seven doesn’t sound like a bad deal. ‘All with good tread on,’ since you asked.

Other bargains that’ll make you grind your teeth if you buy new without a second thought include a bucket seat for 99p (eBay, obv), a complete winch and all the fixings for about £100 and a set of Monroe shocks for, er, free. Fortune favours the brave.

That could be Matt’s motto for the whole project, actually. Taking on someone else’s modded vehicle is always a huge risk, even when the someone in question is as well known and respected as Greg. But he’s not one to shirk from a challenge, nor from the hard graft that goes with it.

‘I got the vehicle about a month before the Frontera Annual Meet,’ he says, ‘and my aim was to get it back on the road for then since it is such an iconic one in the club. But with a week to go, I found the front diff had exploded out of its case.

‘So I had to source one and fit it in time. When I found one, it was delivered to me on the Friday evening while I was already at the meet. So I changed the front diff and casing in the field – it took less than two hours in the end.’ There’s many ways to make a big arrival, but in the eyes of any true off-road man that one’s unbeatable.

That might be Matt’s verdict on the truck itself, too. What would he have done differently, we ask? ‘Nothing.’ Okay then, what’s he going to change? Any future plans? ‘The front’s going to be lifted more,’ he says. ‘I’m looking at going to 4-5”. I’ll be getting a rear winch for the tray in the back, and once the extra lift’s done I’ll fit 33” tyres. And I want to get a reversing camera, as well as a camera for under the front winch so I can park in car parks easier!’

You just knew all that metalwork was going to raise its head again, didn’t you? It certainly wasn’t made for the road, but Matt reckons it’s so valuable that finding ways of getting round its drawbacks is totally worthwhile.

‘The cage is a work of art,’ he says. ‘I can see why it took so long to build.’ And when it comes to art, Jackson Pollock paintwork on the bulkhead is a very nice touch – the sort of thing that marks a vehicle out as being a cut above.

These days, Greg has teamed up with another off-roading mate to form Fronty4x4Spares, who you’ll find on Facebook and in Maidstone (or by calling 01622 739908). Matt’s a happy camper driving The Duck, and a decade on it’s still an instantly recognisable calling card for the guy who built it. It might have suffered the odd heavy landing, but this Frontera definitely still has its wings. See The Duck in action, and you’ll be sure to quack a smile.
