Cherokee and Proud

Originally Published: August 2012 Words: Glyn Bardsey Pictures: Steve Taylor

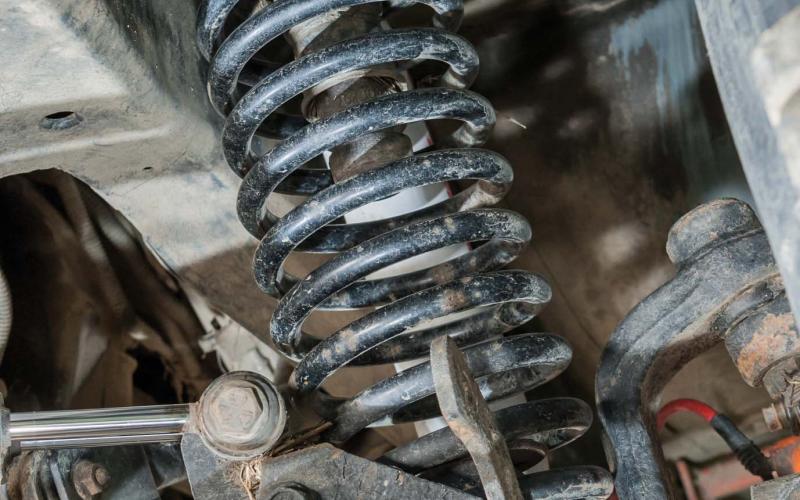

A 5” overall lift is achieved at the front through +3” coils and the +2” spacers you see at their top mountings

Ask any Jeep builder what the Cherokee’s biggest failing is and they’ll point to the Dana 35c back axle. If they try that on this one, however, they’ll find themselves pointing instead at a Chrysler 8.25 unit; like its counterpart up front, this has 1:4.1 gearing and has thus far lived with the treatment it gets, though a limited-slip diff means it leads a less brutal life than a full locker would. A Ruff Stuff diff cover helps protect the diff against rocks, while a St George’s flag helps protect it against dragons

A Rockcrusher diff pan cover is the external clue to the fact that this isn’t your average Dana 30 front axle. A high-pinion unit with 1:4.1 gearing, it’s fitted with an Aussie Locker – and despite not being famed for its strength, it hasn’t yet been provoked into failure by the big, aggressive tyres it wears

The steel winch bumper might not be the last word in prettiness, but it’s plenty strong and has absolutely no unnecessary metal to it, which is about as good a definition of efficiency as you’re going to get. Some winch mounts are described as ‘discreet,’ but the Come-Up ds9.5i plonked on top of the bumper is very much the other thing; with a wireless remote and synthetic rope, however, it too is lean and fit

Even with a 5” lift, the Cherokee won’t accommodate 34” tyres unless you cut a load of bodywork out from its wheelarches. So Tony did exactly that. The bolt-on flares that tidy it up and keep it legal were chosen because they’re as cheap as chips and can therefore be treated as disposable: when you’re caning them into trees on challenge events, short of building whole new arches out of steel tube it makes no sense to do anything else

The Cherokee’s standard rear bumper is stronger than it looks, but that doesn’t make it man enough to cope with the rough and tumble of winch challenges. This heavy-duty steel affair, on the other hand, could hold up the vehicle on a pointed rock (and probably has), and provides somewhere dependable to hook a tow rope

Here at Total 4x4, we know from bitter experience just how vulnerable the Cherokee’s gearbox crossmember can be. This one, on the other hand, is reinforced, so instead it’s the ground below it that’s vulnerable. Behind it is a Warn transfer case guard, while also visible in this picture are heavy-duty control arms whose length corresponds to the height of the suspension lift to correct the front axle’s castor angle

The Cherokee’s sills are quite nicely tucked away out of trouble, but you won’t half regret it if you do sit it on one. Hence these box-section rock sliders, which Tony fabricated himself

One thing Tony’s Cherokee has that the super-Grand on the previous pages doesn’t is a snorkel. There are many reasons for this, a very good one being that that vehicle has a V8 petrol engine and therefore has no business being in water deep enough to make a raised breather worthwhile, whereas this one is a diesel and gets used in the sort of events where sometimes you’ve got to go in deep to get that all-important last punch of the day. The air it breathes in goes to the engine via a Green cotton filter, but aside from that and an extra fan on the radiator the engine is totally standard

You could argue that the Grand Cherokee on the previous article is more heavily modified than it really needs to be for overland travel. But you’d never say the same about Tony Willetts’ Cherokee, which remains a daily driver – as well as taking part in monthly winch challenges, and bearing the scars to prove it.

Tony bought the Jeep five years ago, because he needed a vehicle for his work as a carpet fitter and, in his words, it was ‘dirt cheap.’ All well and good, but a friend with a Discovery was going off-roading one day, he decided to tag along and he found to his surprise that his Jeep was able to do most of the same stuff.

That’s all it took for the bug to bite. ‘I’ve been building it ever since,’ he says, ‘and there’s plenty to do yet!’

An obvious similarity between the Cherokee and Grand Cherokee is that in standard form, neither is going to win any awards for ground clearance. No surprise, then, that as with Bob Seaborn’s WJ, a suspension lift is at the heart of Tony’s vehicle.

Not counting the extra diameter of its 34x11.50R15 Simexes, the vehicle is 5” higher than standard. Up front, a pair of +3” coils is augmented by +2” spring spacers, while the Mansfield +3” leaf packs at the back is fitted using +2” shackles. Being leaf-sprung, the back axle locates itself, but keeping the front unit in order are heavy-duty upper and lower control arms of the correct length for the height of the lift.

That indicates a level of subtlety that’s all too often missing on down-home vehicle builds, and one which the Cherokee’s somewhat rough and ready appearance might not lead you to assume you’ll find here. But Tony is willing to go a long way to achieve small advantages over the vehicle’s standard spec.

He’s swapped out the original back axle, for example. Not for the far stronger Dana 44, which is a rarity in the UK and priced accordingly, but for a Chrysler 8.25. ‘It’s slightly stronger than the Dana 35c,’ he says, which might sound a bit underwhelming, but when you’re dealing with an axle which is most famous for being so easy to break (and awkward to fix) that’s a little that can go a long way.

Besides, the mods he’s made elsewhere in the drivetrain are pure commonsense. There’s an Aussie locker in the front, but only a limited-slip diff in the back – keeping the pressure off those halfshafts.

‘It’s not so bad if you break a front one,’ he says. ‘You can pull the hub off, have the UJ out and still drive it home. But if you break a back one, it’s held on with a C-clip, so it’s not a five minute job. That’s one of the reasons why I’ve not put a locker in the back yet, because it’s still on standard halfshafts.’

That’ll change soon, as when we spoke to him he was waiting for a set of heavy-duty units to arrive from the States, but right there you have a perfect example of how, if you have to take it in stages, you need to take it in intelligent stages. How many people have thrown in an ARB, kept the halfshafts standard and ended up wishing they’d waited and done it all at once?

With so much still standard on the vehicle, you wonder what Tony might do if he was starting again from scratch – or, to put it another way, what’s still on his wish list for the future. More power from the engine, perhaps, or funkier suspension to go with the rear locker when it comes?

Not a bit of it. ‘We’ve just bought a tube bender, basically just to protect the sides a bit more. And I’ve still got to fit the slip-yoke kit on the back.’ Get the impression that he’s a man who’s happy with his car?

Let’s try it another way. If money were no object, what would he build? After all, every time he goes punch-hunting he’s surrounded by people who’ve made more conventional choices.

‘I’ve had Defenders and Discoverys, but this was my first Jeep and I prefer it.'

You can build a Discovery as big as you want for next to no money, because there’s a load of second hand parts out there for them. But doing a Jeep is a bit different.

‘You could get a Grand Cherokee to do the same as mine, for the same purpose. But only if you don’t mind wrecking it a bit. I don’t think I’d go for a Wrangler – I’ve had a go in a JK, and I’m not that keen on them.

‘So I think I’d stay with something like my Cherokee. I like the room you’ve got in it. I like the slightly longer wheelbase. Sometimes it is a bit hard when you’re on a tight switchback or something like that, but at other times, on long climbs, it does better than a short-wheelbase. So if anything I’d throw a load of money at something like mine, but I’d get a newer one, and I’d probably go for the petrol. But having said that, the engine braking on mine is superb - I get queues forming behind me!’

It says a lot when you ask someone what he’d have instead and while he’s trying to answer, he comes back to raving about what he’s already got. Quite simply, the Cherokee ticks all the boxes for Tony – and though he admits to there still being loads he wants to do to it, he’s already got it to the stage where the point of no return is an increasingly distant spot on the horizon.

There is, however, a major change on the way, and it’s one that you feel may will be pivotal in the Jeep’s development. After all these years, it’s about to be retired as his work vehicle and, though it’ll still be road legal, reserved just for play.

That’s why he wants to protect the sides more, and with a tube bender in his life you’d assume he’ll be adding some roll protection before long too. After all, once that rear locker goes in he’ll be able to get it into crazier positions than ever – and, no doubt, knock it about still more.

Not that we expect Tony to stop caring about his Cherokee. Like Bob Seaborn – and, indeed, anyone who’s built a vehicle because they wanted to be a bit different – he’s attached to his truck because it stands out from the crowd. He jokes that when he turns up to fit a carpet, his customers must think that the Beverly Hillbillies have arrived, but if you know what you’re looking at you’ll quickly spot that this Jeep is no rough ‘un. It might not be as lavish in its appearance as Bob’s Grand, and that might only be the first of many differences. But it surely deserves to be mentioned in the same breath – because each in its own way is a very fine example of Jeep-building at its best.

DIY ROCK SLIDERS, CHEROKEE, MANSFIELD SPRINGS, RUFF STUFF DIFF COVER, ROCKCRUSHER DIFF COVER, COME-UP DS9.5I WINCH, WARN TRANSFER CASE GUARD, GREEN AIR FILTER, SIMEX EXTREME TREKKERS
