Living It Large

Originally Published: April 2013 Words: Robbie Ronson Pictures: Vic Peel

James rates Isuzu’s underbody protection very highly. This plate runs from the bottom of the rad to below the sump. This picture also shows the unusual front axle, with an offset diff and fixed tube taking drive to a pair of independent shafts

Independent suspension doesn’t need to mess up your ground clearance if it’s designed with off-roading in mind

Look at the Trooper’s steering links here. Oh, you can’t see them. An area that’s first in the firing line on many live-axled 4x4s is totally safe here, tucked up and well away from any potential ground hits

Up front, the suspension has been lifted by increasing the preload on the torsion bars, and the bump stops have been modded to regain down travel lost during the lifting process. Note also the extended lower shock mount, which allows the wheels to drop as far as physics will allow without the shocks bottoming out

You can’t see the extra tension wound into the torsion bar here, but you certainly can see how long it is

Land Rover Defender front springs have a higher rate than the originals, and their extra length provides a 2” lift. Shocks are standard for now, but James is planning to replace them with longer Pro-Comp units to free up more droop. Land Rover spring seats are welded to the axle case to give the springs somewhere to call home

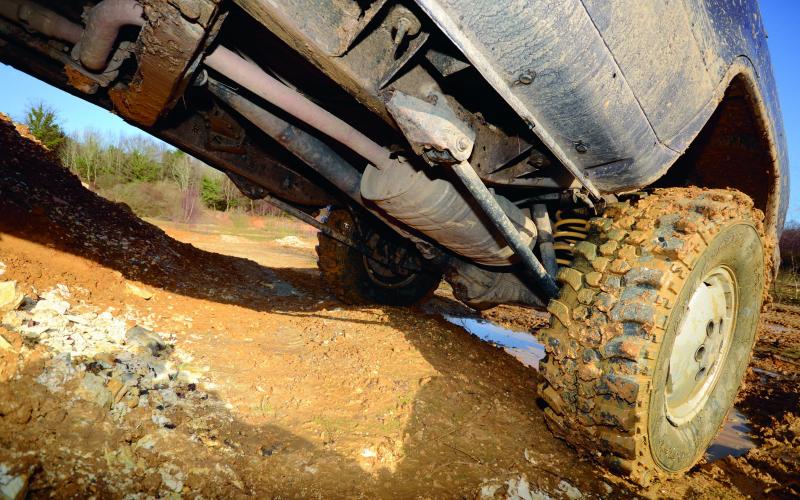

The springs may be taller, but the rear suspension is still located as standard. Isuzu’s original trailing links have more than enough about them to cope with a couple more inches and a set of Special Tracks, even when they’re trying to rip the back axle out from under the vehicle at full travel and max chat

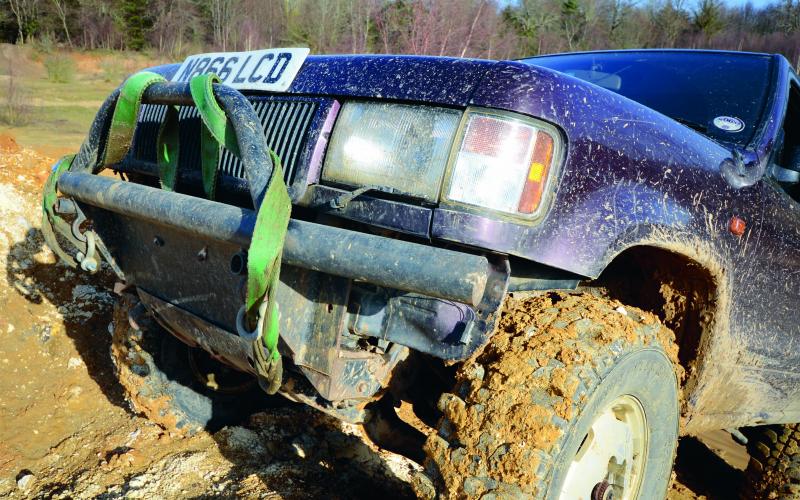

This tubular bumper was originally meant to go on a Discovery. It’s been customised a bit to fit, and now runs down into a radiator guard made from steel plate and secured to the original mounts via 10mm brackets

The standard rear bumper was removed and replaced with a fabricated unit made from 100 x 50 x 5mm steel box. Welded directly to the back of the chassis, as well as the factory towbar mount, this is nice and tight to the rear body and contains recesses cut out to house the tail lights

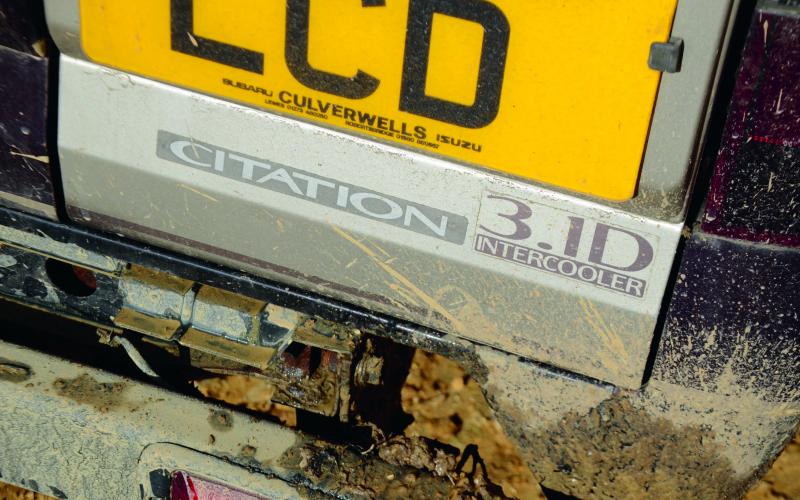

This view from tight in to the rear bumper gives you a better idea of how it mates to the back body. It won’t win any awards for prettiness, but it won’t need a week in hospital from being reversed into a bollard at Tesco’s, either. Talking of prettiness, Troopers often used to be supplied with two-tone body colours, and we’re sure the silver door is just a homage to that…

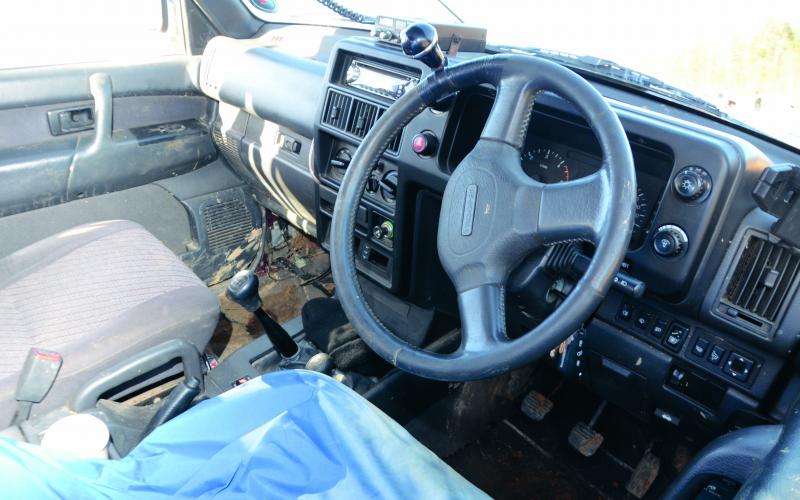

If Isuzu was still making this vehicle and selling it today, everyone would say how ancient the interior looked. By the everyday standards of the off-road playday set, however, it’s lavishly comfortable and packed with controls for equipment you’d probably never have a use for. Look very carefully, though, and you’ll see a button for a heated seat; there’s no such thing as an off-roader who doesn’t have a use for those once in a while

A mod worth knowing about if you’re going to go to work on a Trooper is to fit solid drive flanges from a Mk3 model. Why? Because this Mk2 came with auto locking hubs as standard, and that’s just a great big opportunity for a breakage when your drivetrain has to deal with the sort of grip a set of Special Tracks delivers. Manual locking hubs would have been an alternative, but James points out that this would mean having to get out an grovel around in the mud, This is a top-of-the-range Citation model, you know…

Standard alloys go a long way to helping preserve the Trooper’s deceptively original appearance. 275/75x16 Insa Turbo Special Tracks, on the other hand, weren’t even on the options catalogue… no, not even for the Citation

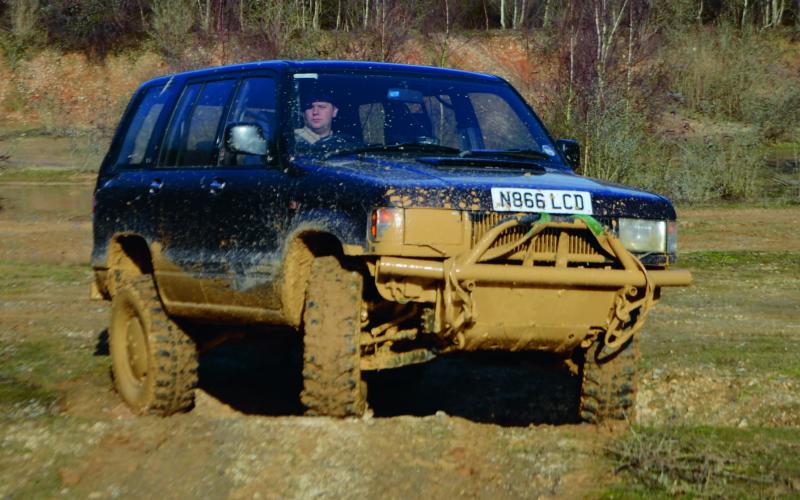

You don’t see many modded Isuzu Troopers doing their thing in the UK, and when you do they’re normally covered in bolt-on goodies. But this is a rock-solid off-road workhorse, and these days you can buy them for sweeties – and as James West’s 5-door proves, a bit of ingenuity and hard work is all it takes to turn one into a top toy. A top toy with, if you don’t mind, some top luxuries…

People have certain set ideas about particular vehicles. In the case of the Isuzu Trooper, when you hear about a modified one you’re likely to assume that someone’s built it by waving a chequebook at expensive goodies imported from abroad.

You don’t need to spend much time looking at James West’s Mk2 5-door to work out that that’s not the case here. Dating from the era when the Trooper was so popular that Vauxhall brought it in, too (calling it the Monterey), his 3.1D Citation was a range-topper in its day.

Actually, that’s not fair. Who’s to say that its ‘day’ isn’t now? After all, here’s a Trooper being used for what it’s best at when most of its brethren are crumbling into sheds on suburban streets, which is no way to treat such a worthy old truck.

As evidence of the state so many of these vehicles have got into, the Trooper cost James a mere £600. ‘The whole point was to go and have some fun for minimal cost. I’ve probably spent the same again on bits and it’s done really well at all the places that I’ve taken it.’

Whether by luck or good judgement (we’d guess the latter), James’ £600 Trooper came to him with its chassis in excellent nick. ‘Unusually for a Trooper,’ he points out. Knowing not to look a gift horse in the mouth, he got underneath it with a brush and a huge pot of underseal, and came out afterwards with ‘black measles,’ as he puts it. ‘Easily the worst job I’ve ever done. It wouldn’t come off me for about two days!’

Still, that was a job worth doing and no mistake. The chassis remains otherwise standard, as do the engine, gearbox, transfer case, steering and propshafts, but why exactly would you change any of those things anyway? Diesels of this vintage were way more reliable than those on the later 3.0 Trooper, which ended up subject to a calamitous recall, and all it’s needed so far is routine maintenance.

So, that’s boring, then. What about the good stuff? Underneath, the torsion bars have been wound up and the rear coil springs have been replaced with Land Rover Defender units, gaining a bit of poundage and a couple of inches’ height in the process. That leaves room for a set of 275/75x16 Insa Turbo Special Tracks – so that’s grip in Simex territory, more suspension and still the same trailing links to keep the axle in place. Uh-oh. And guess what? They’re big, they’re strong and they just do it.

James did get rid of the auto-locking freewheeling hubs that were standard on the Trooper at this point, figuring that neither age nor Insa Turbos were going to be on their side. In their place, he’s fitted solid drive flanges from a Mk3. Another kind of protection comes from a full set of extended breathers, but so far he’s stopped short of building a roll cage.

It’s definitely on the drawing board, though. ‘Having “reshaped” the rear quarter whilst out at Piccadilly Wood having a fight with a tree,’ he says, ‘some body protection would certainly be useful!’

Underneath, on the other hand, he reckons Isuzu’s standard bash plates do a pretty good job. The same can’t be said of the bumpers, which he’s fetched off to make way for fabricated steel units (box-section at the back, and a modified tubular unit intended for a Discovery up front), but what this has left him with is a concern over the vehicle’s wheelbase. The original skirts have gone, but you feel that some more steel box would be advisable. ‘The sides and sills are particularly vulnerable,’ he says, ‘due to the long wheelbase when breaking over an obstacle. Standard underbody protection is very good, though, with a large plate all the way down from the bottom of the rad to under the sump. Stilll, it would be good to extend it back to the transfer case crossmember.’

There’s another plan for the future, then, and he’s also thinking about using the factory-fit dual batteries to power a 24-volt winch. That would mean modding the bumper, though, but happily his mate Ben does that kind of thing for a living. ‘I have had a lot of help from my mates Ben and Adam,’ says James, ‘and a lot of stick as well for not having a Land Rover, as they own a Series III and Series II respectively. Ben is a steel fabricator by trade so has been a massive help making the bumpers and on the rest of the metal work. In return I try to put Mr Lucas’ magic smoke back into the wiring on his Series III.’

Want a contrast to the words ‘Series III’? Try this: ‘It’s pretty good to drive on the road, lovely and warm with the ceramic heater and heated seats, does 70mph fine and starts every time.’ Ah yes, he’s talking about the Trooper again. Heated seats, in an off-roader? Believe it. ‘They go down a treat when it’s a cold, wet day off-roading!’

That’s one of the things you get when you’re willing to build something unorthodox, obviously. James has taken the sort of approach you normally associate with old Landies, doing the work on his driveway and cashing in a whole lot of favours with his neighbours in the process, but he’s done it to the sort of truck most people assume you’ve got to spend big to modify. With some strong steelwork, a nifty component swap here and there and a set of remoulds with more meat on them than a joke about horses, he’s got a truck that’ll cruise nicely on the way to playdays and defy everyone’s expectations when he gets to them.

He’s even had a shot at an RTV in the Trooper, having joined the AWDC to do so, and more are in the pipeline. ‘We took part,’ he says. ‘Notice I didn’t say competed!’ And his sense of humour remains intact when you ask him what he would have done differently during the build.

‘I wouldn’t have reversed it into a tree’ is the answer to that one, and we can all sympathise there. He might be driving a radically different vehicle, but he’s just like every other off-roader you’ve ever met. Except he’s got heated seats…
